Gen4x
Silver Edition
LF Band

L12L Series

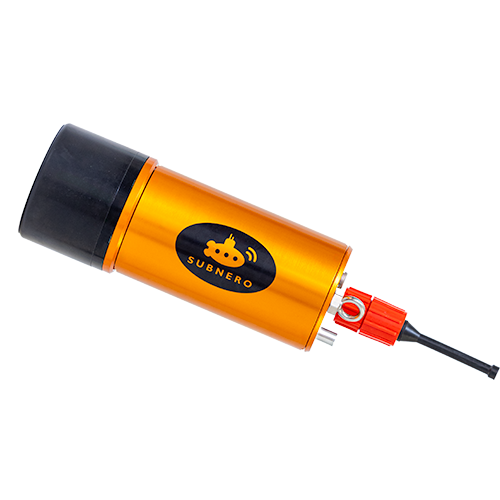

Designed for reliable long-range communication in shallow waters, Subnero’s Silver Edition L12L series modem addresses one of the toughest challenges in underwater acoustics — maintaining robust links over extended distances in complex environments.

Built on decades of research and innovation, the L12L series enables dependable data transfer beyond 10 km, unlocking new possibilities for remote monitoring, tracking, telemetry, and control of subsea assets. Engineered for endurance and stability, it supports mission-critical operations across defense, research, and commercial deployments, where long-range connectivity is essential.

Applications

  • Long-range operations in shallow, mid-range and deep waters
  • Long-term seabed or sensor node deployments
  • Communication and tracking of AUVs and subsea vehicles
  • Coastal area monitoring networks

Key Features

  • Communication range exceeding 10 km in littoral waters*.
  • Up to 8 kbps data rate at shorter ranges.
  • Supports NATO JANUS standard.
  • Ultra-low power deep sleep mode (< 1 mW) for extended deployments.
  • Acoustic ranging functionality.
  • Doppler resilience of ±4 knots or better.
  • Supports arbitrary waveform transmission and recording.
  • Fully programmable using UnetStack for user-defined protocols.

* Depending on channel conditions and reliability requirements.

Looking for a reliable underwater communication solution?

Flexible Configurations

Available in standalone, and open configurations to suit a range of deployment needs—from self-contained setups to integrated systems.

WNC-L12LSS4X

Standalone Configuration

Self-contained modem powered by an external battery or supply.

WNC-L12LSO4X

Open
Configuration

Integration-ready design for AUVs, ROVs, and sensor platforms.

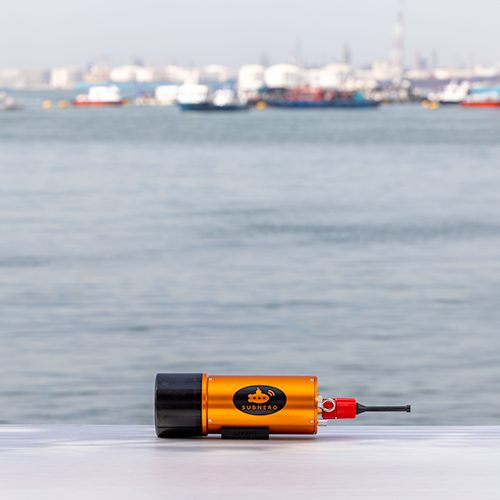

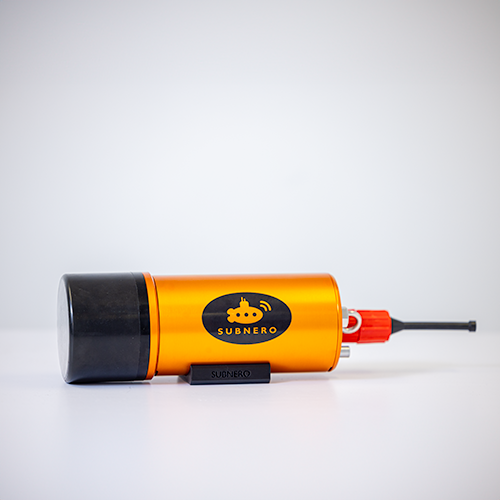

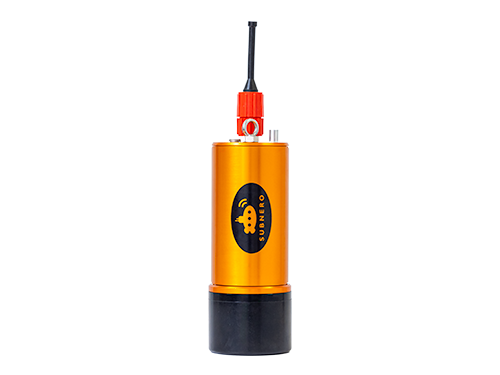

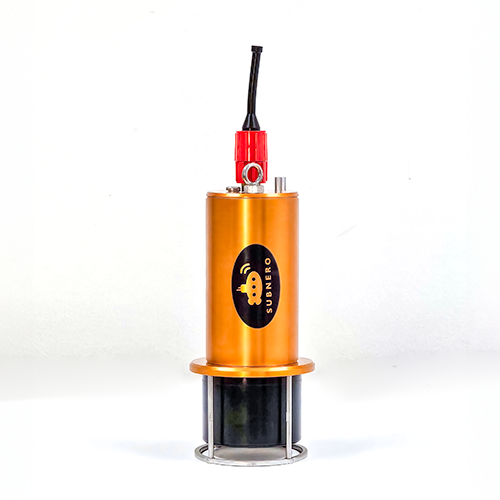

Standalone Configuration (SC)

The standalone configuration (SC) features a pressure-rated housing designed for operation at various depths, powered externally via batteries or through a surface power supply. This configuration is ideal for fixed or moored sensor nodes, seabed installations, coastal monitoring stations, or surface-deployed relay systems, where ease of deployment and reliability are critical.

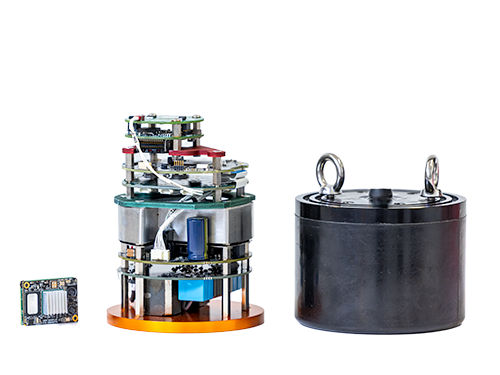

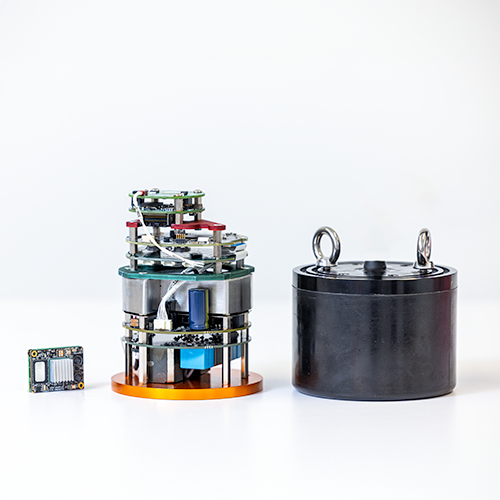

Open Configuration (OC)

The open configuration (OC) streamlines integration and enhances adaptability, making it ideal for incorporation into subsea platforms such as marine robots, autonomous systems, and larger sensors. It supports seamless electrical and software integration for platforms. This configuration is well suited for AUV- or USV-based missions, and payload integration within custom subsea assemblies, providing flexibility without compromising performance.

Brochures

Subnero L12L Series Underwater Modems

Useful Links

WNC Product Series

Technical Specification

Communication
Feature Details
Modulation (software defined) PSK-OFDM, FH-BFSK
FEC (Forward Error Correction) LDPC, BCH, Convolution code
JANUS support Yes
Bandwidth 7 kHz (9 - 16 kHz)
Software
Feature Details
Framework UnetStack
User Interface Interactive web UI
Software Interfaces Java, Groovy, Python, C, Javascript, Julia, JSON/TCP
Electrical
Feature Details
Power source 18 - 30 VDC (24 VDC recommended)
Power consumption < 4 W (receive mode, nominal)
< 45 W (transmit mode, avg.)
< 150 mW (sleep mode)
< 1 mW (deep sleep mode)
Wake up modes Acoustic wakeup, External electrical interrupt, Scheduled wakeup
External interface Ethernet (10/100 Mbps), RS232*
On-board storage 256 GB, 1 TB
Receive channels 1, 2 (configurable at the time of purchase)
Mechanical
Feature Details
Hull material Aluminum, Stainless steel
Depth rating 300m, 2000m
Dimensions SC: ø 100 x 313 mm, OC: ø 88 x 137 mm
Weight (in air / water) SC: 3.8 / 1.5 kg, OC: 0.65 kg / NA
Operating temperature SC: 0 to 40 °C, OC: 0 to 70 °C (electronics) 0 to 40 °C (transducer)
* Different cable required for RS232 connection.
