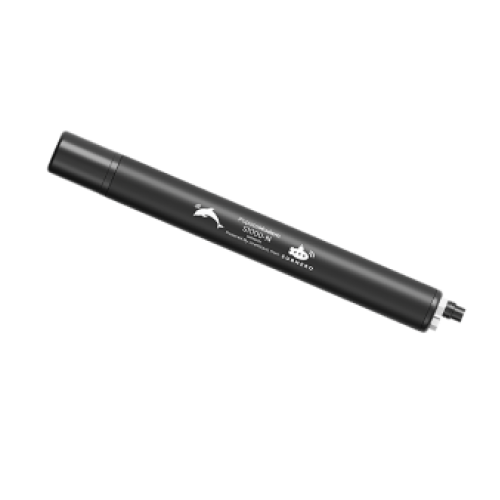

S1000-N

20 - 30 KHz

The Bronze Edition modem (S1000-N) offers an affordable and compact platform for enthusiasts and educators exploring underwater communication and networking. Powered by UnetStack, it bridges the gap between simulation and real-world deployment, enabling entry-level users to design, test, and operate underwater networks with practical, meaningful results.

Key Features

The power of Popoto S-series modems.
Advanced UnetStack networking.
80 bps with Frequency Hopping FSK.
10240, 5120, 2560, 1280, 640 bps with PSK.
1-3 km depending on channel conditions and selected modulation scheme.
APIs in multiple computer languages.
Multihop relay and routing.
Low power operations.

Looking for a reliable underwater communication solution?

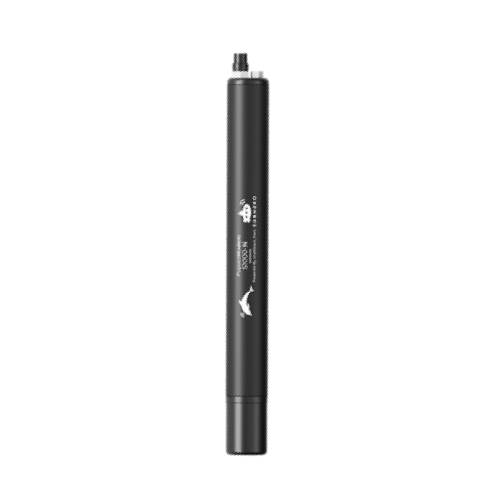

STANDALONE CONFIGURATION

The standalone configuration (SC) features a pressure-rated housing designed for operation at various depths, powered externally via batteries or through a surface power supply. This configuration is ideal for fixed or moored sensor nodes, seabed installations, coastal monitoring stations, or surface-deployed relay systems, where ease of deployment and reliability are critical.

Brochures

S1000-N Underwater Modems

Technical Specification

Communication
Feature	Details
Data rate	80 bps with Frequency Hopping FSK 10240, 5120, 2560, 1280, 640 bps with PSK
Range	1-3 km^*
Frequency band	20 - 30 KHz
Storage	128 GB on included µSD (Expandable)

Power
Feature	Details
Operating voltage	12 - 40 VDC
Power consumption	GPIO Enabled Sleep: < 10µW Acoustic Wake-Up Deep Sleep: < 45 mW Acoustic Wake-Up Sleep: 150 mW Active Receive: 1.5 W
Transmit power	20 W
Battery	22.2V 2500mAh Li-Ion

Interface
Feature	Details
Data connections	Ethernet, RS-422, RS-232
External interface connections	SPI Bus, I2C Bus, GPIO, Analog

Hardware
Feature	Details
Dimensions	376 mm x 49 mm x 49 mm
Weight	Dry: 1275g (Nmodel), In Sea Water: 505g
Depth rating	1000 m

Software
Feature	Details
Software framework	UnetStack
Software interface	Java, Groovy, Python, C, Javascript, Julia, web UI, JSON/TCP
Waveform player	Transmission and reception, passband and baseband

* Depending on channel conditions and selected modulation scheme

Frequently Asked Question

Q: What is the S1000-N acoustic smart modem?

A: The S1000-N is a new underwater acoustic modem that combines the power of the S1000 series modems from Popoto Modem and UnetStack from Subnero. The modems will have a fully functioning network stack out of the box, and offer a data rate of up to 10240 bps over a range of 3+ km.

Q: What is the advantage of combining the power of Popoto's S-series modems with the network stack of UnetStack?

A: By combining these two technologies, the S1000-N offers a truly advanced underwater acoustic smart modem that is both compact and affordable. The modems are ideal for use in a wide range of underwater applications that need flexibility and affordability.

Q: What are the key features of the S1000-N modems?

A: The S1000-N modems offer a data rate of up to 10240 bps over a range of 3+ km, multihop routing, low power operations, and arbitrary waveform transmission and reception.

Q: What is multi-hop routing?

A: Multihop routing allows the S1000-N modems to communicate over longer distances than traditional acoustic smart modems. This is achieved by using a series of intermediate nodes to relay data between the source and destination.

Q: What application domains are the S1000-N modems ideal for?

A: The S1000-N modems are ideal for use in scientific research applications. They offer a reliable means of communicating underwater, and their low power consumption makes them ideal for use in applications where power is at a premium, all of this with affordable pricing.

Q: How can I learn more about the S1000-N acoustic smart modem?

A: For more information on the S1000-N acoustic smart modem, customers can contact either Subnero or Popoto Modem directly. Both companies will be happy to answer any questions you may have about the S1000-N smart modems and their features. To learn more about UnetStack, you can visit www.unetstack.net.

Q: When will the S1000-N modems be available?

A: The S1000-N Modems are available now. Customers can contact either Subnero ([email protected]) or Popoto Modem ([email protected]) for more information on availability and pricing. The S1000-N is available at a starting price of US $6,750.

Q: Where can I buy the S1000-N acoustic smart modem?

A: Customers can contact either Subnero [email protected] or Popoto Modem [email protected] for purchasing inquiries.
