Legacy
Platinum Edition
MF Band

M25M Series

20 - 32 kHz Band

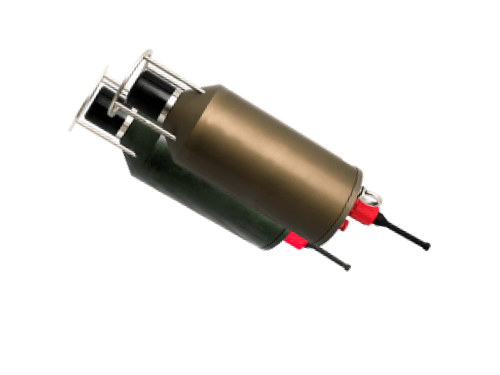

Delivering performance under the toughest environmental conditions, Subnero’s platinum edition modems are designed to meet rigorous quality standards mandated by sectors such as defense, oil & gas and subsea engineering.

Key Features

  • Up to 15 kbps* data rate.
  • More than 4 km communication range in tropical waters.
  • Certified to MIL-STD-810G, 461E, and related environmental standards.
  • Ranging functionality with 0.1 m precision.
  • Doppler resilience of ±4 knots or better.
  • Support for coherent and incoherent communication schemes.
  • Support for arbitrary signal transmission and recording (passband, baseband).

* Depending on channel conditions and reliability requirements.

Looking for a reliable underwater communication solution?

Flexible Configurations

Available in standalone, and embedded configurations to suit a range of deployment needs—from self-contained setups to integrated systems.

WNC-M25MPS3

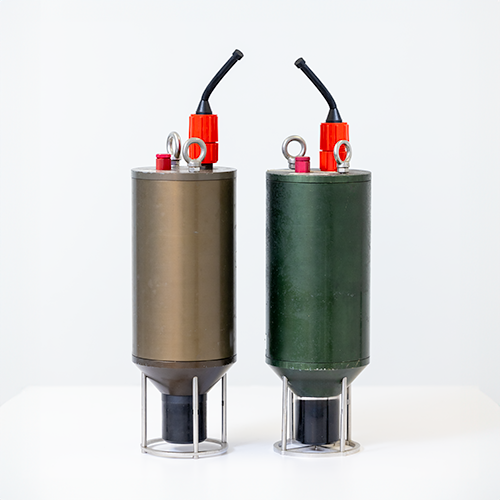

Standalone Configuration

Self-contained modem powered by an external battery or power supply.

WNC-M25MPE3

Embedded
Configuration

Integration-ready electronics for AUVs, ROVs, and sensor platforms.

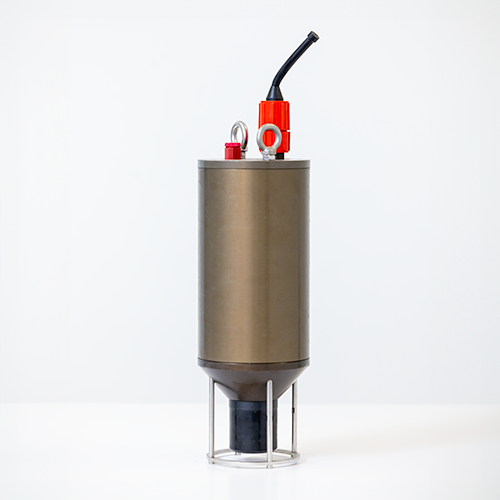

Standalone Configuration (SC)

The standalone configuration (SC) features a pressure-rated housing designed for operation at various depths, powered externally via batteries or through a surface power supply. This configuration is ideal for fixed or moored sensor nodes, seabed installations, coastal monitoring stations, or surface-deployed relay systems, where ease of deployment and reliability are critical.

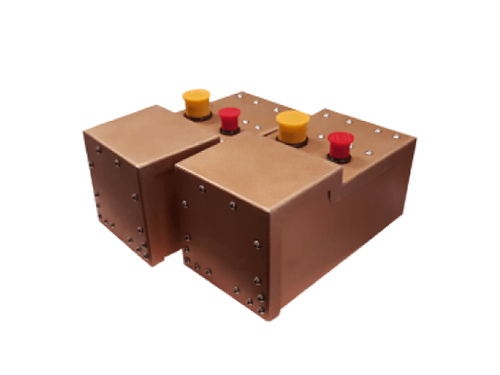

Embedded Configuration (OC)

The embedded configuration (EC) streamlines integration and enhances adaptability, making it ideal for incorporation into subsea platforms such as marine robots, autonomous systems, and larger sensors. It supports seamless electrical and software integration for platforms. This configuration is well suited for AUV-based missions, and payload integration within custom subsea assemblies, providing flexibility without compromising performance.

Brochures

Subnero M25M Underwater Modems

Technical Specification

Communication
Feature Details
Modulation (software defined) PSK-OFDM, FH-BFSK
FEC (Forward Error Correction) LDPC, BCH, Convolution code
JANUS support Yes, subject to operating frequency band
Bandwidth 12 kHz (20 - 32 kHz)
Software
Feature Details
Framework UnetStack
User Interface Interactive web UI
Software Interfaces Java, Groovy, Python, C, JavaScript, Julia
Electrical
Feature Details
Power supply 22 - 28 VDC (24 VDC recommended)
Power consumption < 4 W (receive mode, nominal)
< 60 W (transmit mode, avg.)
< 80 W (transmit mode, max.)
< 1.5 W (sleep mode)
External interface Ethernet (10/100 Mbps), RS232 (115200 bps)
Mechanical
Feature Details
Hull material Aluminum
Operating depth 300 m
Dimensions SC: ⌀ 127 ✕ 400 mm EC: 90 ✕ 90 ✕ 180 mm
Operating temperature SC: 0 to 50 °C EC: 0 to 70 °C (Electronics), 0 to 50 °C (Transducer)
Supported MIL standards MIL-STD-810G, MIL-STD-810E, MIL-STD-461E
Workmanship - IPC class 2A
- Conformal coating
- Environmental Stress Screening (ESS)
